Bosch Gtc 450-13 Thermal Imaging Camera – Handheld Infrared Scanner (Bare Unit)

Description

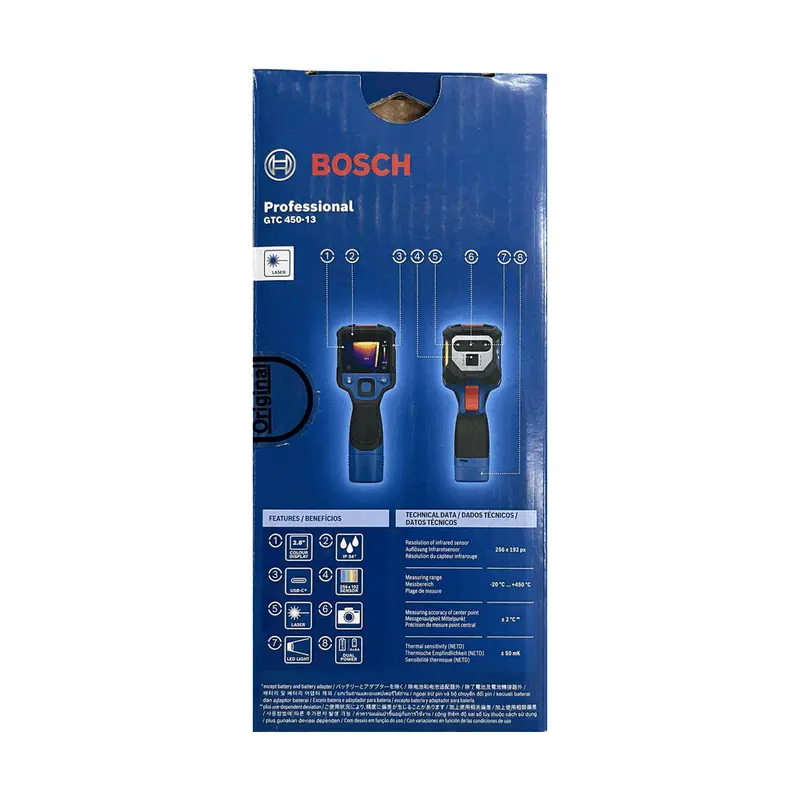

Bosch GTC 450-13 Thermo/Thermal Camera (Bare)

The GTC 12V-450-13 Professional thermal camera is your go-to entry-level tool for visualising temperature differences with ease. With a 256 x 192 px resolution and a clear 2.8″ display with full focus on the thermal image, you can quickly analyse temperature variations in a wide range of scenarios. Its compact design ensures a seamless fit in any toolbag, making it perfect for professionals. And with an IP54 rating, 2m drop resistance and a protective flap for the IR sensor, the camera is built to withstand tough jobsite conditions.

Equipment & Application

Designed for quick and efficient temperature analysis, this thermal camera starts up in just 3 seconds. The wide field of view helps you locate heating pipes, check heating and AC systems, and find issues in electrical components – especially indoors. With a user-friendly interface, worklight for dark environments, laser for marking the measuring point, and visual camera for transparency and pic-in-pic functionality, this thermal camera is ideal for HVAC, industrial, automotive, and renovation tasks.

FEATURES:

Compact thermal camera for fast and easy visualisation of temperature differences

• Visualise temperature differences in high image quality with just one click
• Quick startup, integrated laser, worklight and visual camera to ensure easy use
• Robust, compact design with IP54 rating and impact resistance from falls up to 2m

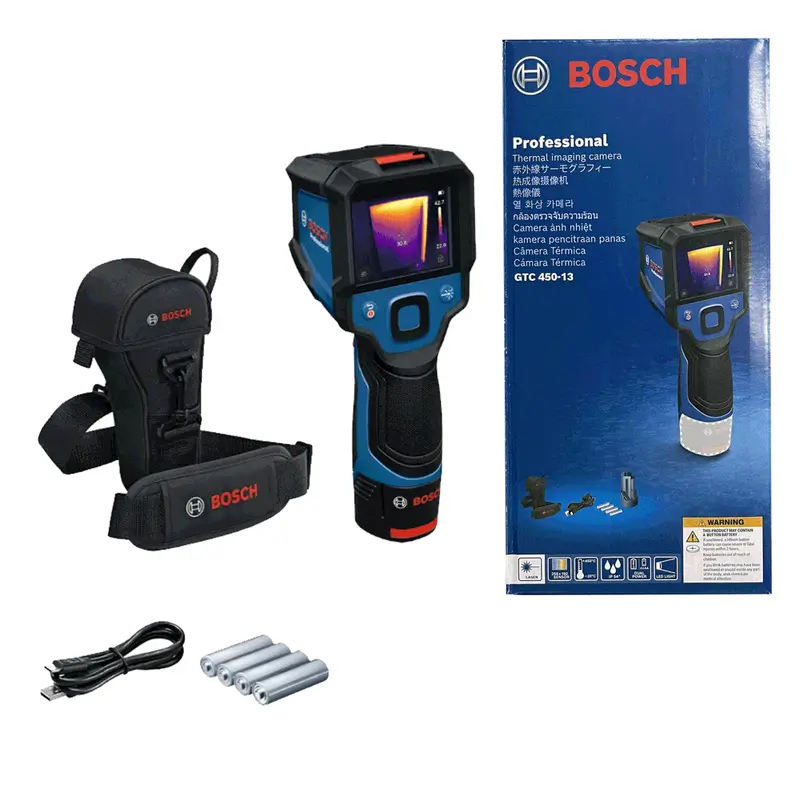

INCLUDES:

• AA1 alkaline battery adapter
• 1 x tool bag
• 4 x 1.5 V LR6 battery (AA)
• USB-C® Cable


  SPECIFICATIONS:

  Battery voltage	12.0 V
  Measurement range*	-20 °C to +450 °C
  Measuring accuracy of IR*	± 2 °C (center point)
  Resolution	0.1 °C
  Laser diode	Laserclass 2, 645-660 nm
  Thermal sensitivity (NETD)	<=50 mK
  Size of IR sensor	256 Pixel x 192 Pixel
  Number of measuring points	49,152
  Field of view (FOV)	56° x 42°
  Power supply and runtime	4 x 1.5 V LR6 (AA) 4 hours, 1 x GBA 12V 8 hours
  Frame buffer (number of images)	500
  Memory type	Internal memory
  File format of image	.jpg
  Data transfer	USB-C®
  Shock protection	2 m
  Dust and splash protection*	IP54 (except for the battery or battery adapter)
  Weight*	0.35 kg
  Size of display	2,8″
  Operating temperature	-10 – 50 °C
  Storage temperature	-20 – 50 °C
  Focus distance, minimum	0.5 m
  Thermal image refresh rate	9 Hz
