Description

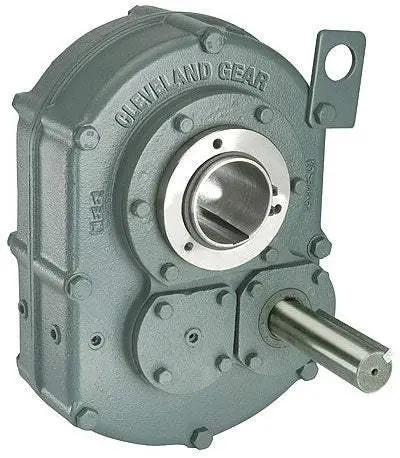

Cleveland Gear CGSM9-15 Reducer is a high strength and high quality 15:1 ratio shaft mount reducer. The Cleveland Gear brand reducers are suitable fro AGMA Class I, II, or III applications and use carburized, case hardened, and ground helical gearing. This CGSM9-15 Reducer also features alloy steel shafts with hardened and ground gear sets and bearing/ seal journals to maximize durability and extend operation life. The double lip spring loaded shaft seals keep oil in while keeping contents out, while the oversized bearings ensure a reliable working life in harsh applications. Then a high strength precision machined cast iron keeps everything protected and provides maximum support for shafts.
CGSM9-15 Reducer Dimensions
- Part #: CGSM9-15
- Ratio: 15:1
- Box Size: 9
- Dimension (L): 22.63″
- Dimension (M): 31.69″
- Dimension (N): 14.12″
- Dimension (F): 2.4375″
- Key: 0.625″ X 0.312″ X 7.75″
- Maximum Dimension (B): 4-15/16″”
- Dimension (C): 2.44″
- Dimension (E): 8.75″
- Dimension (G): 6.63″
- Dimension (W): 3.13″
- Dimension (U): 4″
- Dimension (X): 7.04″
- Dimension (V): 5.66″
- Dimension (Q): 9.65″
- Dimension (Y): 2.98″
- Dimension (H): 8.12″
- Dimension (A1): 6.59″
- Dimension (A2): 12.66″
- Dimension (A3): 10.81″
- Dimension (h): 11.31″
- Minimum Dimension (R): 30″
- Maximum Dimension (R): 36″
- Dimension (P): 0.75″
- Dimension (T): 7″
- Gear Box Weight: 783 LBS
