Description
Welders

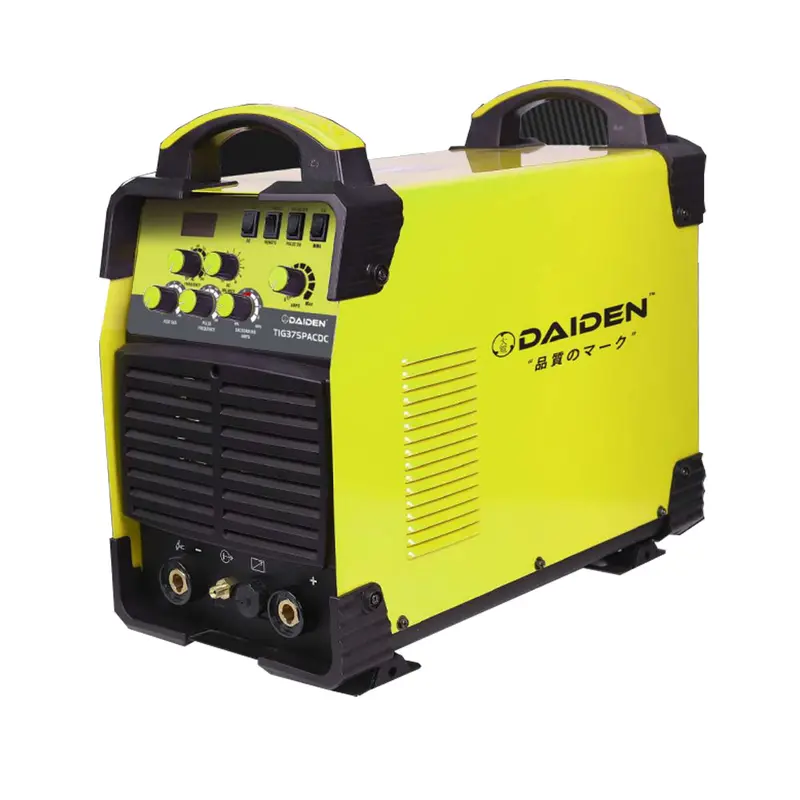

Daiden TIG375PACDC TIG Welding Machine (E204)
Key Features
– AC/DC TIG with HF ignition, MMA
– AC square wave, adjustable AC balance
– Adjustable pulse frequency and base current in pulse TIG welding
– Adjustable post-flow time
– Dual voltage 1ph-220/440 V AC, auto input voltage detection
machine can be connected to two live wires of 3ph 220/440 V power
– Remote control interface is available for analog torch and pedal
remote controller
– Optional 6.5L water cooler and trolley
| Model | TIG375PACDC | |
| Input Voltage | 1ph 220 V AC±15%, 50/60 Hz | 1ph 440 V AC±15%, 50/60 Hz |
| l1 max | 44 A | 38 A |
| l1 eff | 26 A | 23 A |
| Output current range MMA | DC: 5~275 A | DC: 5~375 A |
| AC: 5~260 A | AC: 5~360 A | |
| Output current range MMA | 10~200 A | 10~300 A |
| Rated duty cycle TIG | 35% | 35% |
| Rated duty cycle MMA | 40% | 35% |
| Open circuit voltage | 84 V | |
| Pre-flow time | 0.5 s | |
| Post-flow time | 0.5~20 s | |
| AC Frequency | 20~200 Hz | |
| Pulse frequency | 1~200 Hz | |
| Pulse frequency | 50% | |
| Base current | 10~90% of peak current | |
| Dimensions | 520×260×440 mm | |
| Weight | 30 kg | |
