Description

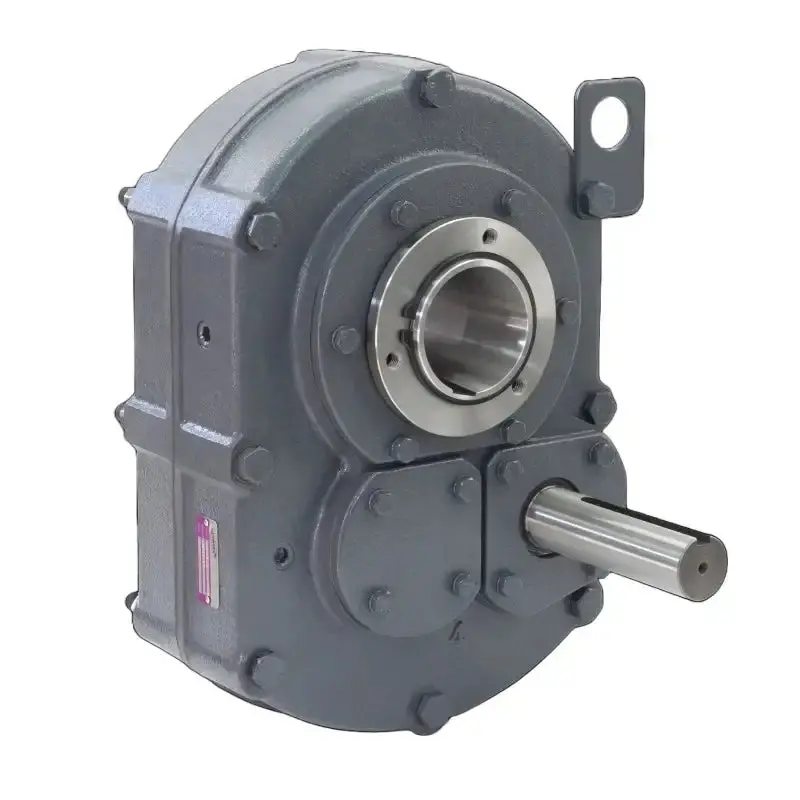

This premium Worldwide Electric SMR9-25 reducer is a dimensional equivalent and drop in replacement to the DID-925 reducer and will meet all of your toughest applications needs. It will also work with all DID-925 reducer accessories so you can still use your existing safety stock and installed base. Or if you are needing a new accessory we also have a full line of motor mounts, belt guards, tapered bushing kits, back stops, and rebuild kits. We offer size 2 through size 10 shaft mount reducers directly from stock that interchange with the “major” competitors.
A few things that makes this 25:1 ratio reducer have great durability and high performance is the use of premium bearings, FCD45 cast iron housing, sealed shafts, and manufacturing the internal components out of high grade steel that has been case hardened and precision ground to A.G.M.A. standards.
This gearbox also interchanges with a broad range of other brands and model numbers. These premium quality reducers are designed and manufactured to move loads safely and efficiently without compromising performance.
Reducer Dimensions:
- Part #: SMR9-25
- Ratio: 25:1
- Box Size: 9
- Dimension (L): 22.63″
- Dimension (M): 31.69″
- Dimension (N): 14.12″
- Dimension (F): 2.4375″
- Key: 0.625″ X 0.312″ X 7.75″
- Maximum Dimension (B): 4-15/16″”
- Dimension (C): 2.44″
- Dimension (E): 8.75″
- Dimension (G): 6.63″
- Dimension (W): 3.13″
- Dimension (U): 4″
- Dimension (X): 7.04″
- Dimension (V): 5.66″
- Dimension (Q): 9.65″
- Dimension (Y): 2.98″
- Dimension (H): 8.12″
- Dimension (A1): 6.59″
- Dimension (A2): 12.66″
- Dimension (A3): 10.81″
- Dimension (h): 11.31″
- Minimum Dimension (R): 30″
- Maximum Dimension (R): 36″
- Dimension (P): 0.75″
- Dimension (T): 7″
- Gear Box Weight: 783 LBS
In addition to the standard original shaft mount reducers we can also supply the “Ultimate” series shaft mount reducers from Worldwide Electric in box sizes 2 through 9.
For additional information or load and mechanical ratings on the Worldwide Electric SMR9-25 reducer drop in for DID-925, or to get pricing and availability. Please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
