Description

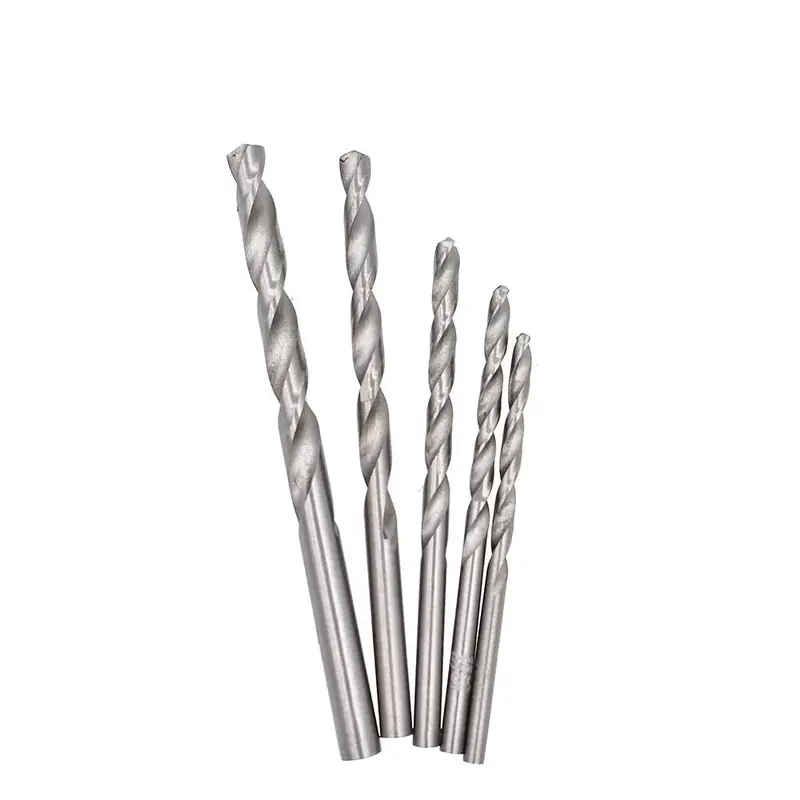

The Lotus HSS-G Drill Bit (Tube) is designed for precision drilling in stainless steel and other tough materials. Engineered with cobalt alloy and fully ground high-speed steel, it delivers superior durability, heat resistance, and extended tool life for demanding applications.
Key Benefits
- Cobalt alloy construction ensures long-lasting performance when drilling stainless steel
- Fully ground HSS provides excellent wear resistance and heat protection
- Two cutters and dual flutes enable fast chip removal for improved drilling efficiency
Product Overview
Manufactured to DIN 338 standards, the Lotus HSS-G Drill Bit features a Type N flute angle and a 135-degree split point tip for precise centering and reduced walking during drilling. The h8 diameter tolerance ensures accuracy, making it suitable for industrial, fabrication, and workshop use. Its robust construction allows consistent performance even under high-temperature conditions.
Ideal Applications
- Drilling stainless steel and alloy materials
- Metal fabrication and workshop use
- General-purpose precision drilling tasks
Technical Specifications
| Material | Cobalt Alloy, Fully Ground HSS |
| Standard | DIN 338 |
| Type | Type N (Flute Angle) |
| Tip Angle | 135° |
| Diameter Tolerance | h8 |
| Flute Design |
Two cutters Two flutes |
Available Variants
| LTHG0564-B10 / 2.0mm (5/64”) | ₱70.00 |
| LTHG0332-B10 / 2.5mm (3/32”) | ₱90.00 |
| LTHG0180-B10 / 3.0mm (1/8”) | ₱155.00 |
| LTHG0140-B10 / 5.5mm (1/4”) | ₱420.00 |
| LTHG0716-B5 / 11mm (7/16”) | ₱675.00 |
| LTHG0120-B5 / 13mm (1/2″) | ₱1,000.00 |
What’s Included
- Lotus HSS-G Drill Bit (Tube)
Learn more about our Warranty Policy or contact us for professional assistance.
