Description

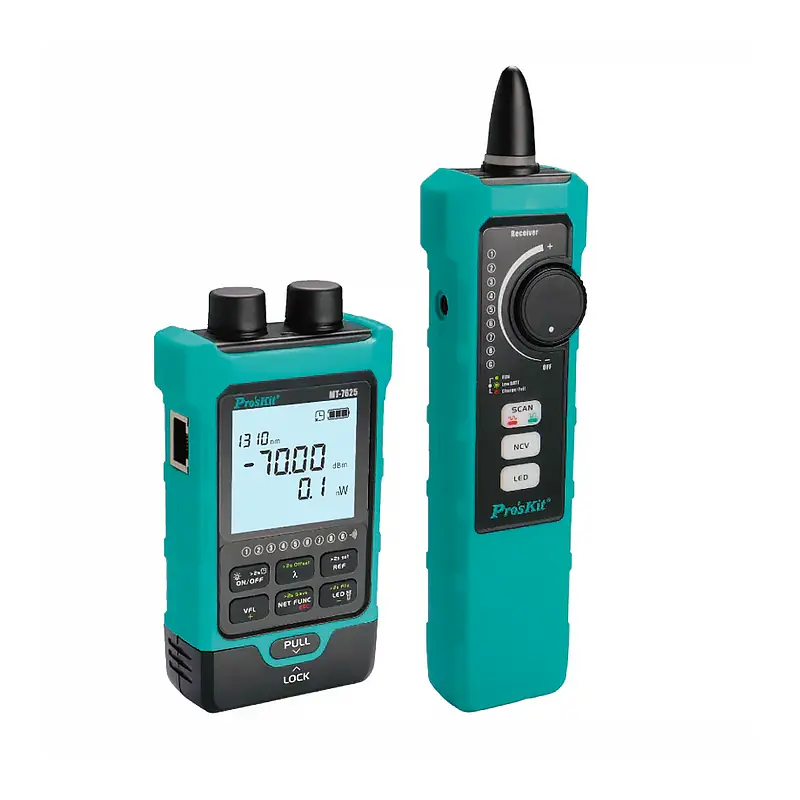

The Pro’sKit MT-7625 Optical Power Meter & Tone Probe Kit is a comprehensive testing solution designed for fiber optic and network diagnostics. Combining an optical power meter, visual fault locator (VFL), cable tester, and tone probe receiver, this kit provides technicians with a versatile toolset for installation, maintenance, and troubleshooting of fiber and LAN systems.
Equipped with an InGaAs detector and wide wavelength compatibility, the MT-7625 delivers accurate optical measurements across multiple standard wavelengths. Its integrated tone tracing, cable mapping, and NCV detection functions make it ideal for telecom, data communication, and network maintenance applications.
- Multi-function kit with optical power meter, VFL, and tone probe receiver
- Wide wavelength range with high measurement accuracy
- Supports fiber testing and LAN cable diagnostics in one device
Ideal Applications
- Fiber optic network installation and maintenance
- Telecommunications and data network diagnostics
- LAN cable tracing, testing, and troubleshooting
Technical Specifications
| Model |
MT-7625 |
| Detector Type |
InGaAs |
| Wavelength Range |
700 ~ 1700 nm |
| Measurement Wavelength |
850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650 nm |
| Measurement Range |
-70 ~ +10 dBm |
| Resolution |
0.01 dB |
| Accuracy |
±0.2 dB (1310 / 1550 nm) ±0.3 dB (850 / 980 / 1300 / 1490 / 1625 / 1650 nm) ±1 dB (1270 / 1577 nm) |
| Power Display Units |
dB / dBm / mW / μW / nW |
| Modulation Detection |
270 / 330 / 1k / 2k Hz |
| Data Storage |
500 groups |
| VFL Output Power |
15 mW |
| VFL Test Distance |
10–12 km (Single Mode) |
| Network Testing |
RJ45 (UTP/STP), cable sequence testing up to 600 m Cable tracing with analog & digital modes |
| Additional Features |
Wavelength Memory, Self Calibration, REF Value, Backlight LED illumination, NCV detection (AC 90V–1000V) |
| Battery |
3.7V / 450mAh Polymer Lithium (Type-C charging) |
| Working Time |
>30 hours (OPM only) |
| Operating Conditions |
-10°C to 50°C, <90% RH |
| Dimensions |
Main Unit: 114 × 64 × 29 mm Receiver: 180 × 45 × 26 mm |
| Weight |
Main Unit: 110 g Receiver: 105 g |
What’s Included
- Pro’sKit MT-7625 Optical Power Meter Unit
- Tone Probe Receiver
- USB Type-C Charging Cable
- Carrying Case
