Description

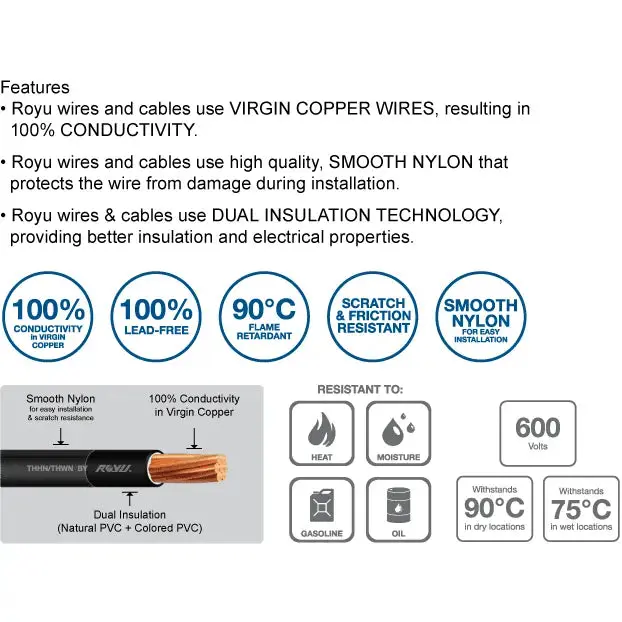

Royu RTN12A 3.5mm² THHN/THWN-2 Conventional Stranded Building Wires
- Thermoplastic High Heat Resistant with Nylon / Thermoplastic Heat and Water-Resistant with Nylon
- 100% Conductivity Virgin Copper Lead-Free Insulation Quality Product
- Flame Retardant
- Scratch & Friction Resistant
- Smooth Nylon for easy installation
| Model | Gauge | Size | Amps (*90° Single Wire) |
“Amps ( **90° up to “”3 wires””)” |
| RTN12A | 12 AWG | 3.5mm² | 40 | 30 |
| Model | Color | M/Pkg | Price |
| RTN12A | Red,White, Black | 75M/Box | 2,471.04 |
| Red,Yellow,Green,Blue,White,Black | 150M/Box | 4,942.08 | |
| Red,White, Black | 500M/Spool | 16,473.60 |
*Allowable Ampacities of Single-Insulated Conductors rated Up to and Including 2000Volts in Free Air, Based on Ambient Temperature of 30°C
**Allowable Ampacities of Insulated Conductors rated Up to and Including 2000Volts in Free Air, Not more than Three Current-Carrying Conductors in
Raceway, Cable, or Earth(directly burried), Based on Ambient Temperature of 30°C
