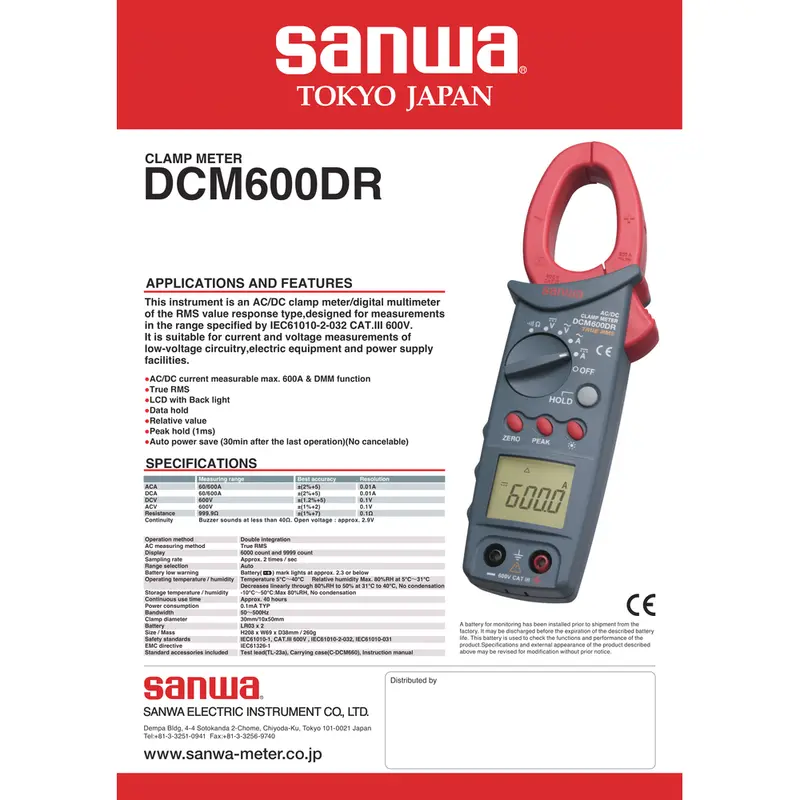

Sanwa DCM600DR Digital Clamp Meter / Tester [AC/DC 600A] True RMS
Suitable for maintenance of vehicle, hybrid vehicle, EV & DMM functions
- AC/DC current measurable max. 600A
- Peak hold (Interval: 1ms)
- Auto power save (30min./Cancelable)
- ORIGINAL 100% Genuine Beware of Fake
This insturment is an AC/DC Clamp meter/digital multimeter of the RMS value response type, designed for measurements in the range specified by IEC61010-2-032 CAT.III 600V.
It is suitable for current and voltage measurements of low voltage circuitry, electric equipment and power supply facilities.
| Function | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCA | 60/600A | ±(2%+5) | 0.01A | |
| ACA | 60/600A | ±(2%+5) | 0.01A | |
| DCV | 600V | ±(1%+2) | 0.1V | 1MΩ |
| ACV | 600V | ±(1.2%+5) | 0.1V | |
| Resistance | 999.9Ω | ±(1%+7) | 0.1Ω | |
| Continuity | Buzzer sounds at less than 40Ω Open voltage: approx. 2.9V | |||
| Sampling rate | 3 times/sec. |
| Bandwidth | 50-500Hz |
| Display | 6000 |
| Clamp diameter/Conductor size | Φ30mm/10×50mm |
| Battery | LR03×2 |
| Battery life | Approx. 40 hrs. (Backlight off) |
| Size/Mass | H208×W69×D38mm/Approx. 260g |
| Safety standards | IEC61010 CAT.Ⅲ600V |
In the peak hold mode, the measuring range is fixed at 600A.
