Description

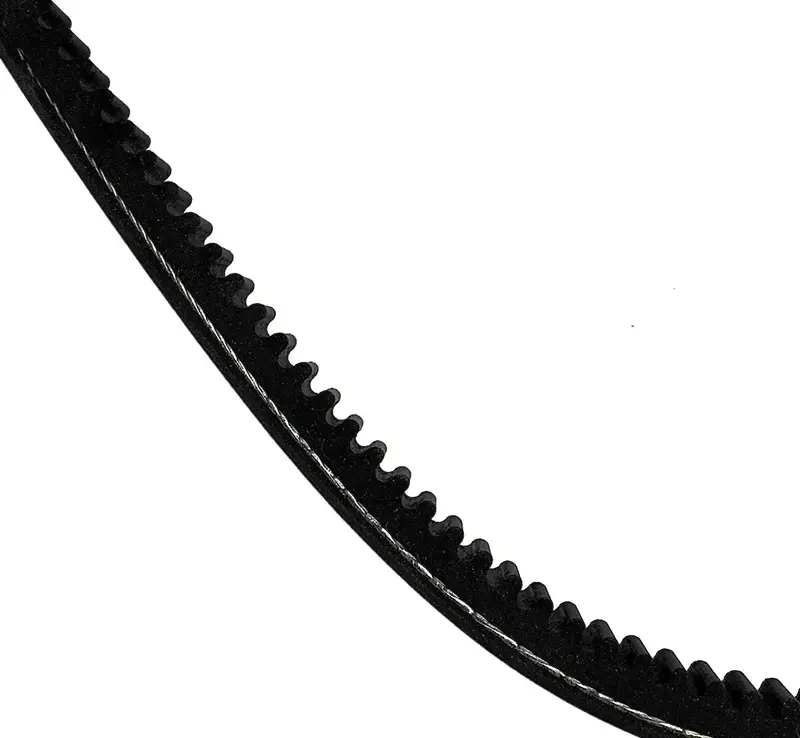

Our metric SPZX2360 belt is manufactured in accordance with ISO 4184 standards and is made using a premium quality natural rubber with polyester cords, and are cogged construction. Cogged v-belts produce a longer working life, cooler operation, and has around a 2% better efficiency rating. What else sets our metric SPZX-2360 belt above others is the high-capacity and performance ratings as well as its superior oil and heat resistance while also having static dissipating properties. The outside diameter (pitch length) of the SPZX2360 v-belt is 93.4″, designated with the last digits in the part number. We also supply a complete line of premium SPZ sheaves that conform to ISO and DIN specifications. Additionally, we supply electric motors, gear reducers, roller chain, sprockets, shafting, and more! For additional information or to get a quote please contact us and we will be happy to assist you.
SPZX2360 V-Belt Dimensions
- Belt Size: SPZX2360
- Overall Length: 2360mm
- Overall Top Width (W): 9.7mm
- Belt Height(H): 8mm
- Belt Weight: 0.40 LBS
SPZX2360 Belt Sheaves
| Sheave Size | Outside Diameter | Pitch Diameter | Type | Bushing Size | Maximum Bore | (F) | (G) | (K) | (L) | (H) | Weight (kG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1SPZ50 | 54 | 50 | 9 | 1008 | 25 | 37 | 26 | 14 | 23 | – | 0.3 |
| 1SPZ56 | 60 | 56 | 9 | 1008 | 25 | 37 | – | – | 37 | – | 0.5 |
| 1SPZ60 | 64 | 60 | 9 | 1008 | 25 | 22 | – | – | 22 | – | 0.3 |
| 1SPZ63 | 67 | 63 | 1 | 1108 | 28 | 16 | – | 6 | 22 | 62 | 0.3 |
| 1SPZ67 | 71 | 67 | 1 | 1108 | 28 | 16 | – | 6 | 22 | 62 | 0.3 |
| 1SPZ71 | 75 | 71 | 1 | 1108 | 28 | 16 | – | 6 | 22 | 62 | 0.4 |
| 1SPZ75 | 79 | 75 | 1 | 1108 | 28 | 16 | – | 6 | 22 | 62 | 0.4 |
| 1SPZ80 | 84 | 80 | 1 | 1108 | 28 | 16 | – | 9 | 25 | 75 | 0.5 |
| 1SPZ85 | 89 | 85 | 1 | 1210 | 32 | 16 | – | 9 | 25 | 86 | 0.7 |
| 1SPZ90 | 94 | 90 | 1 | 1210 | 32 | 16 | – | 9 | 25 | 86 | 0.7 |
| 1SPZ95 | 99 | 95 | 1 | 1210 | 32 | 16 | – | 9 | 25 | 86 | 0.8 |
| 1SPZ100 | 104 | 100 | 1 | 1210 | 32 | 16 | – | 9 | 25 | 86 | 0.9 |
| 1SPZ106 | 110 | 106 | 1 | 1610 | 42 | 16 | – | 9 | 25 | 92 | 1 |
| 1SPZ112 | 116 | 112 | 1 | 1610 | 42 | 16 | – | 9 | 25 | 92 | 1.1 |
| 1SPZ118 | 122 | 118 | 1 | 1610 | 42 | 16 | – | 9 | 25 | 92 | 1.2 |
| 1SPZ125 | 129 | 125 | 1 | 1610 | 42 | 16 | – | 9 | 25 | 92 | 1.3 |
| 1SPZ132 | 136 | 132 | 1 | 1610 | 42 | 16 | – | 9 | 25 | 92 | 1.5 |
| 1SPZ140 | 144 | 140 | 1 | 1610 | 42 | 16 | – | 9 | 25 | 92 | 1.7 |
| 1SPZ150 | 154 | 150 | 1 | 1610 | 42 | 16 | – | 9 | 25 | 92 | 2 |
| 1SPZ160 | 164 | 160 | 1 | 1610 | 42 | 16 | – | 9 | 25 | 92 | 2.2 |
| 1SPZ170 | 174 | 170 | 1 | 1610 | 42 | 16 | – | 9 | 25 | 92 | 2.2 |
| 1SPZ180 | 184 | 180 | 8 | 1610 | 42 | 16 | 152 | – | 25 | 92 | 2.1 |
| 1SPZ190 | 194 | 190 | 8 | 1610 | 42 | 16 | 162 | – | 25 | 92 | 2.7 |
| 1SPZ200 | 204 | 200 | 10 | 2012 | 50 | 16 | 170 | 8 | 32 | 91 | 1.9 |
| 1SPZ212 | 216 | 212 | 10 | 2012 | 50 | 16 | 182 | 8 | 32 | 91 | 2.1 |
| 1SPZ224 | 228 | 224 | 10 | 2012 | 50 | 16 | 194 | 8 | 32 | 91 | 2.2 |
| 1SPZ236 | 240 | 236 | 10 | 2012 | 50 | 16 | 206 | 8 | 32 | 91 | 2.4 |
| 1SPZ250 | 254 | 250 | 10 | 2012 | 50 | 16 | 220 | 8 | 32 | 91 | 2.5 |
| 1SPZ280 | 289 | 280 | 10 | 2012 | 50 | 16 | 250 | 8 | 32 | 91 | 2.9 |
| 1SPZ315 | 319 | 315 | 10 | 2012 | 50 | 16 | 285 | 8 | 32 | 91 | 3.2 |
| 1SPZ355 | 359 | 355 | 10 | 2012 | 50 | 16 | 325 | 8 | 32 | 91 | 3.7 |
| 1SPZ400 | 404 | 400 | 4 | 2012 | 50 | 16 | 371 | 8 | 32 | 112 | 6.9 |
| 1SPZ450 | 454 | 450 | 4 | 2517 | 60 | 16 | 421 | 15 | 45 | 124 | 7.2 |
| 1SPZ500 | 504 | 500 | 4 | 2517 | 60 | 16 | 470 | 15 | 45 | 124 | 7.5 |
