Description
The Taifu 3″ Hybrid Solar Deep Well Pump (TSC-HY Series) is engineered for high-efficiency water extraction using either AC or DC power input. Designed for deep well applications, this hybrid AC/DC submersible pump supports solar-powered operation while maintaining compatibility with conventional AC supply.
Key Benefits
- Hybrid AC/DC operation for flexible power sourcing
- High head performance for deep well water extraction
- Energy-efficient operation suitable for solar integration
Product Overview
The Taifu 3″ TSC Hybrid Solar Deep Well Pump series is designed for agricultural irrigation, remote water supply, and off-grid installations. With a 3450 RPM motor speed and high head capability up to 155 meters (model dependent), it delivers stable water output for deep bore applications.
These models accept AC voltage from 100–265V and DC voltage from 60–430V, enabling seamless integration with solar panel systems. Bundled solar setup options are available for complete renewable water pumping solutions.
Ideal Applications
- Deep well water extraction
- Solar-powered irrigation systems
- Remote and off-grid water supply
Technical Specifications – 3TSC3.5-95-72/750-HY A/M
| Power | 0.75 kW / 1.0 HP |
| Speed | 3450 RPM |
| Max Flow | 3.5 m³/h |
| Max Head | 95 m |
| Outlet | 1″ |
| AC Voltage | 100–265 V |
| DC Voltage | 60–430 V |
| Power Type | Hybrid AC/DC |
Technical Specifications – 3TSC3.8-125-110/1100-HY NM
| Power | 1.1 kW / 1.5 HP |
| Speed | 3450 RPM |
| Max Flow | 3.8 m³/h |
| Max Head | 125 m |
| Outlet | 1″ |
| AC Voltage | 100–265 V |
| DC Voltage | 60–430 V |
| Power Type | Hybrid AC/DC |
Technical Specifications – 3TSC3.8-155-150/1500-HY NM
| Power | 1.5 kW / 2.0 HP |
| Speed | 3450 RPM |
| Max Flow | 3.8 m³/h |
| Max Head | 155 m |
| Outlet | 1″ |
| AC Voltage | 100–265 V |
| DC Voltage | 60–430 V |
| Power Type | Hybrid AC/DC |
Pricing – Pump Only
| Model | Price (PHP) |
| 3TSC3.5-95-72/750-HY A/M | 22,395.00 |
| 3TSC3.8-125-110/1100-HY NM | 24,430.00 |
| 3TSC3.8-155-150/1500-HY NM | 25,515.00 |

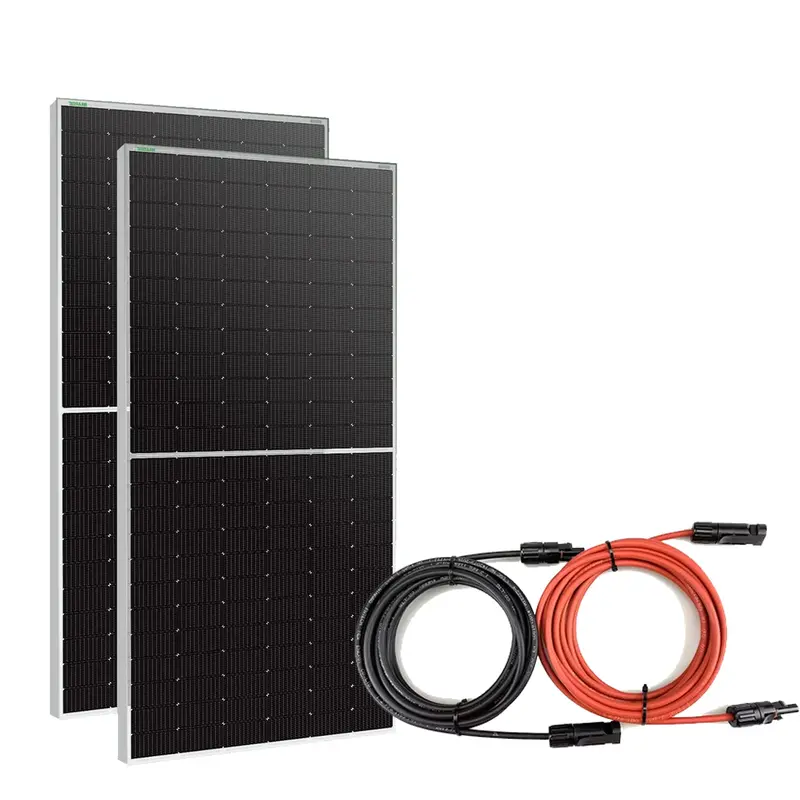

Pricing – Bundle with Solar Setup
| Bundle Configuration | Price (PHP) |
| 3TSC3.5-95-72/750-HY + 2 × 590W Solar Panels + 30ft (4mm) Solar Extension Cable | 40,145.00 |
| 3TSC3.8-125-110/1100-HY + 3 × 590W Solar Panels + 30ft (4mm) Solar Extension Cable | 49,930.00 |
| 3TSC3.8-155-150/1500-HY + 4 × 590W Solar Panels + 30ft (4mm) Solar Extension Cable | 58,765.00 |
What’s Included
- 1 × Taifu 3″ Hybrid Solar Deep Well Pump (selected model)
Learn more about our Warranty Policy or contact us for professional assistance.
