Description

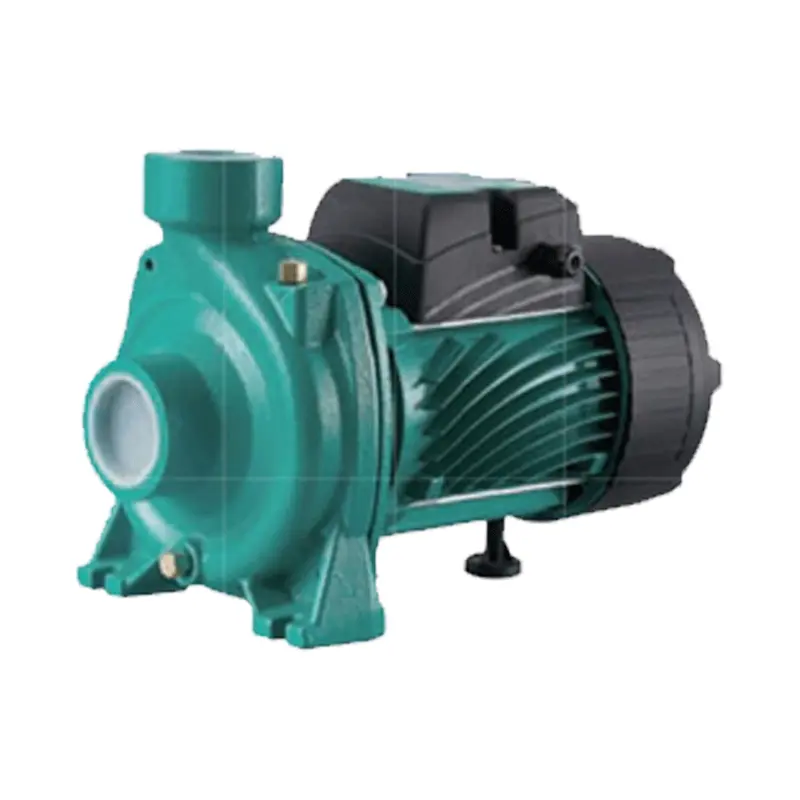

The Taifu TCP Standard Centrifugal Pump is engineered for efficient clean water transfer in residential, agricultural, and light industrial applications. Designed with a spiral flow channel structure and high-quality internal components, it delivers stable hydraulic performance with improved efficiency and service life.
Key Benefits
- Spiral flow channel pump design for higher hydraulic efficiency
- Graphite against ceramic mechanical seal for extended durability
- F-class copper enameled motor with built-in thermal protection
- Electrocoated pump body and cover for enhanced rust prevention
- Coaxial motor and pump shaft with stainless steel welded shaft for smooth operation
Product Overview
The Taifu TCP series centrifugal pump is designed for transporting clean water and similar liquids under controlled operating conditions. It supports medium temperatures up to +40°C and operates within ambient temperatures from 0°C to +45°C. The allowable pH range of the medium is 6.5–8.5, with solid impurities not exceeding 0.1% in volume and particle size not greater than 0.2 mm.
The pump is built to operate within a voltage fluctuation range of ±10% of the rated value, ensuring stable and reliable performance in typical installation environments.
Ideal Applications
- Domestic water supply systems
- Garden irrigation and agricultural transfer
- Clean water circulation and boosting
Technical Specifications – Working Conditions
| Ambient Temperature | 0°C – +45°C |
| Medium Temperature | Up to +40°C |
| pH Range | 6.5 – 8.5 |
| Solid Impurities |
Volume ratio not exceeding 0.1% Particle size not greater than 0.2 mm |
| Voltage Fluctuation Range | ±10% of rated value |
Technical Specifications – Model TCP158
| Model | TCP158 |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Inlet / Outlet | 1″ × 1″ |
| Max Suction | 100 |
| Max Flow | 100 l/min |
Performance Curve – TCP158
| Flow (m³/h) | Head (m) |
| 0 | 30 |
| 1 | 27 |
| 2 | 26 |
| 3 | 24 |
| 4 | 21 |
| 5 | 17 |
| 6 | 13 |
| 7 | – |
| 8 | – |
| 2.5 | – |
What’s Included
- 1 × Taifu TCP158 Standard Centrifugal Pump
