Description

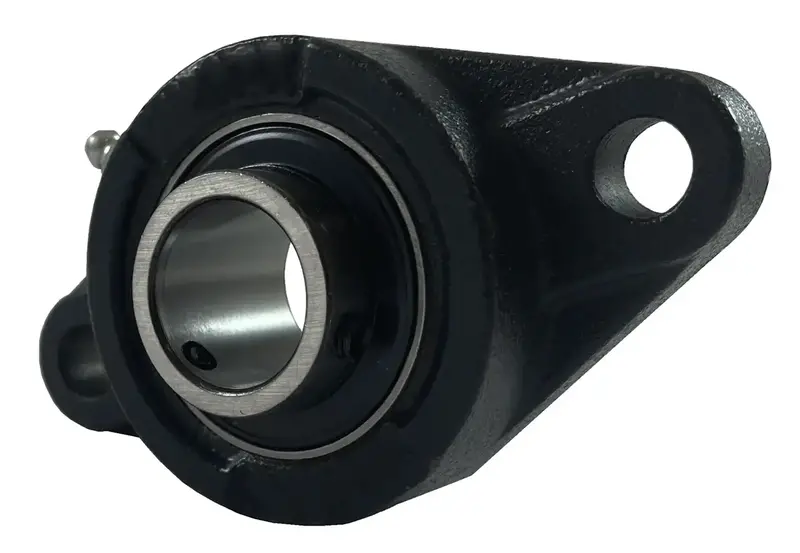

UCFT212-36 bearing is a 2-1/4″ bore two-bolt normal-duty flange bearing that utilizes set screws to secure to a 2-1/4″ shaft. UCFT212-36 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UCFT212-36 bearing with a 2-1/4″ bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFT212-36 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFT212-36 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFT212-36 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFT212-36 bearings, and we will be happy to assist you!
UCFT212-36 Bearing Dimensions
- Part #: UCFT 212-36
- Shaft Diameter (d): 2-1/4″
- Dimension (A): 9.84″
- Dimension (E): 7.938″
- Dimension (I): 1.13″
- Dimension (G): 0.71″
- Dimension (L): 1.88″
- Dimension (S): 0.91″
- Dimension (B): 5.50″
- Dimension (Z): 2.70″
- Dimension (Bi): 2.5630″
- Dimension (N): 1.0000″
- Dimension (M): 1.5630″
- Bolt Used: 3/4
- Dynamic Load Rating (LBS): 10,720
- Static Load Rating (LBS): 7,516
- Bearing Insert: UC 212-36
- Housing Number: FT 212
- Weight (LBS): 9.5
