Description

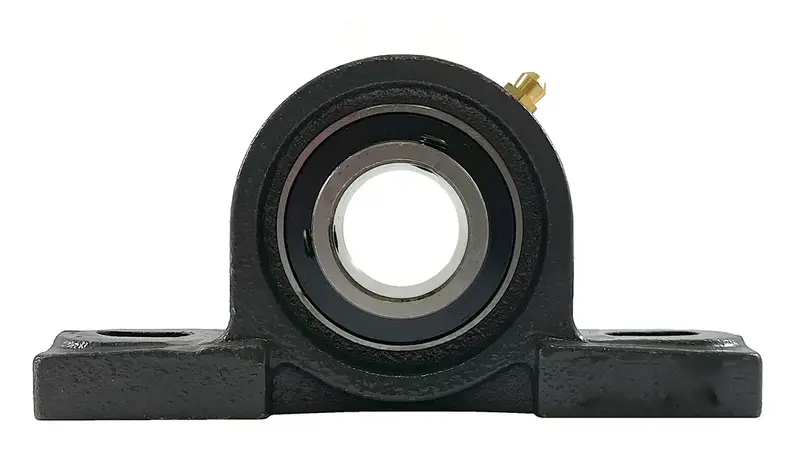

UCP210 bearing is a two-bolt normal duty pillow block bearing with a 50mm bore. It utilizes set-screws for locking onto a 50mm shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our UCP210 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCP210 pillow block bearings are utilized in a wide range of applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this UCP210 bearing is directly interchangeable with other brands. For further information or to get a quote on our UCP210 bearings contact our customer support team and we will be happy to assist you!
UCP210 Bearing Dimensions
- Part #: UCP 210
- Shaft Diameter (d): 50mm
- Dimension (H): 57.2mm
- Dimension (A): 206.0mm
- Dimension (E): 159.0mm
- Dimension (B): 60.0mm
- Dimension (S2): 23.0mm
- Dimension (S1): 18.0mm
- Dimension (G): 21.0mm
- Dimension (W): 114.0mm
- Dimension (Bi): 51.6mm
- Dimension (N): 19.0mm
- Dimension (M): 32.6mm
- Bolt Used: M16
- Dynamic Load Rating (kN): 35.00
- Static Load Rating (kN): 23.71
- Bearing Insert: UC 210
- Housing Number: P 210
- Weight (kg): 2.6
