Description

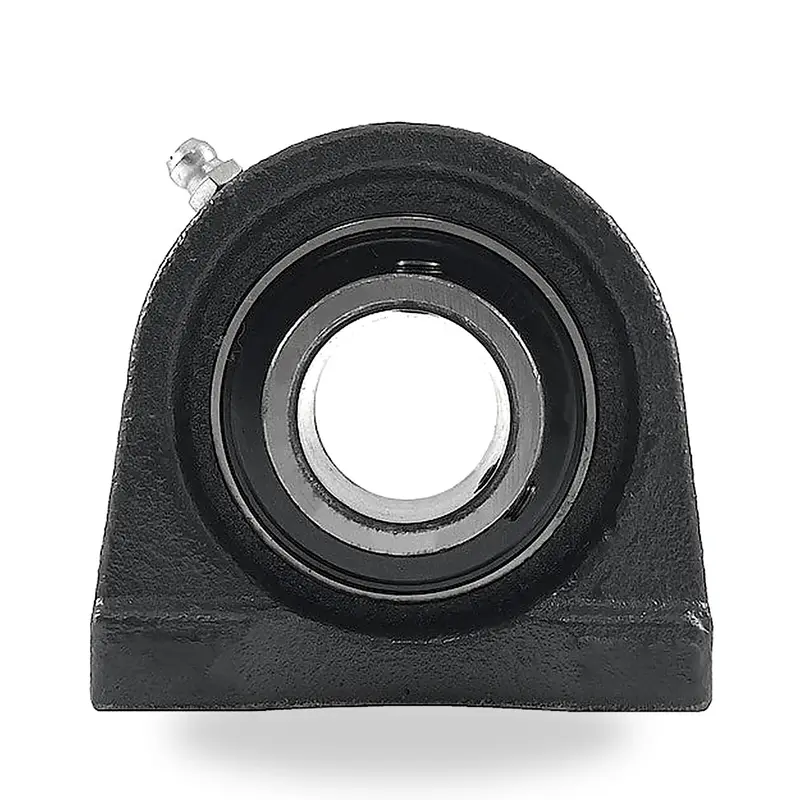

UCTB208-24 bearing is a 1-1/2″ bore tapped-base normal-duty mounted bearing unit that utilizes set screws to secure to a 1-1/2″ shaft. UCTB208-24 pillow block bearings have a unique housing designed for narrow applications with radial loads acting in the direction of the support surface. Our superior UCTB208-24 bearing with a 1-1/2″ bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCTB208-24 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. Tapped base UCTB208-24 pillow block bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCTB208-24 bearings are manufactured to industry standard dimensions; they also interchange with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCTB208-24 bearings, and we will be happy to assist you!
UCTB208-24 Bearing Dimensions
- Part #: UCTB 208-24
- Shaft Diameter (d): 1-1/2″
- Dimension (H): 1.938″
- Dimension (A): 4.63″
- Dimension (E): 3.50″
- Dimension (B): 1.88″
- Dimension (R): 0.75″
- Dimension (G): 0.50″
- Dimension (W): 3.94″
- Dimension (Bi): 1.9370″
- Dimension (N): 0.7480″
- Dimension (M): 1.1890″
- Bolt Used: 1/2-13
- Dynamic Load Rating (LBS): 6,634
- Static Load Rating (LBS): 4,079
- Bearing Insert: UC 208-24
- Housing Number: TB 208
- Weight (LBS): 5.0
