Description

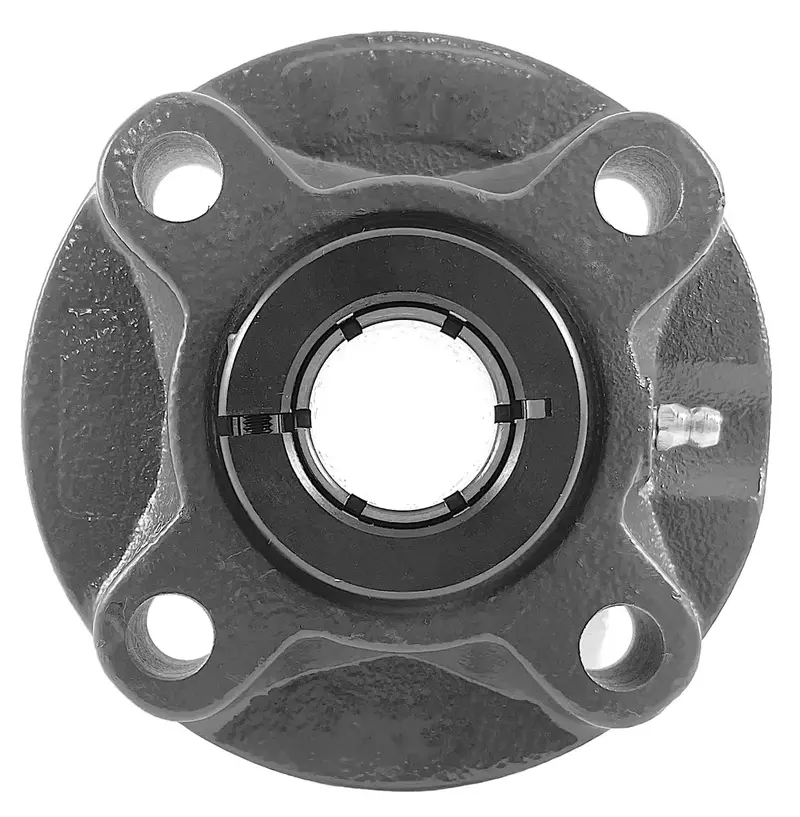

UEFC204-12 bearing is a 3/4″ bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 3/4″ shaft and has a metric based housing. UEFC204-12 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFC204-12 bearing with a 3/4″ bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFC204-12 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFC204-12 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFC204-12 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFC204-12 bearings, and we will be happy to assist you!
UEFC204-12 Bearing Dimensions
- Part #: UEFC 204-12
- Shaft Diameter (d): 1/4″
- Dimension (A): 3.94″
- Dimension (P): 3.07″
- Dimension (E): 2.17″
- Dimension (I): 0.39″
- Dimension (S): 0.47″
- Dimension (J): 0.20″
- Dimension (K): 0.24″
- Dimension (G): 0.81″
- Dimension (F): 2.44″
- Dimension (Z): 1.11″
- Dimension (Bi): 1.2992″
- Dimension (N): 0.5000″
- Dimension (M): 0.7205″
- Bolt Used: 3/8
- Dynamic Load Rating (LBS): 2,883
- Static Load Rating (LBS): 1,496
- Bearing Insert: UE 204-12
- Housing Number: FC 204
- Weight (LBS): 1.7
