Description

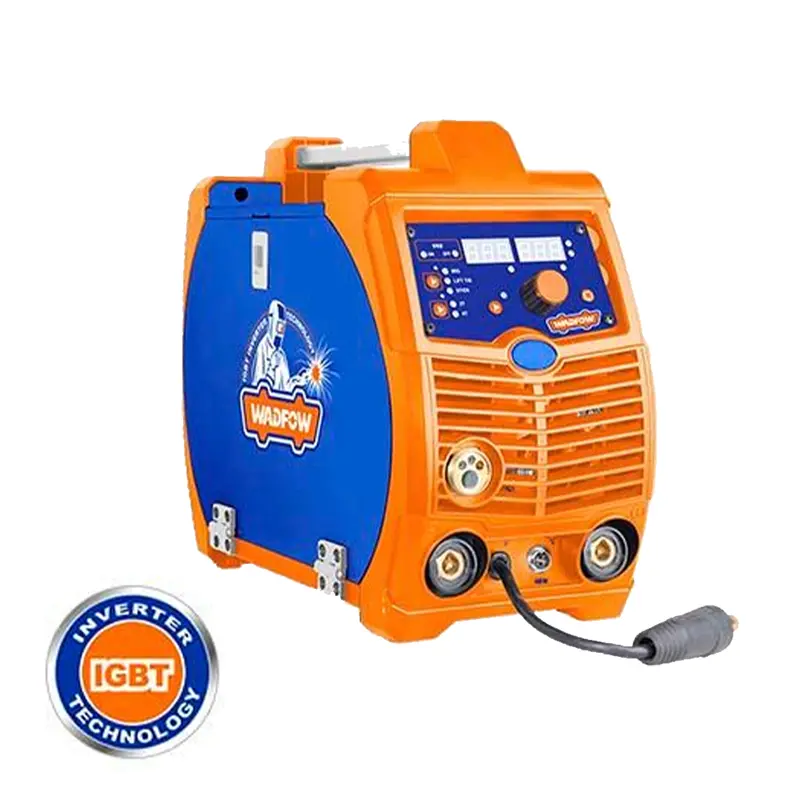

The Wadfow WGTMA20 Inverter MAG / MIG / MMA / TIG Lift Welding Machine is a versatile multi-process welding unit designed for fabrication, maintenance, and repair work. This inverter welding machine supports MIG, MMA, and Lift TIG welding processes, allowing users to handle a wide range of metal joining applications with a single compact machine.
Key Benefits
- Multi-process capability supporting MIG, MMA, and Lift TIG welding
- Output current up to 200A suitable for various fabrication and repair tasks
- Built-in wire feeder compatible with 5kg welding wire spools
Product Overview
The Wadfow WGTMA20 inverter welding machine is engineered to deliver reliable welding performance across multiple welding processes. Designed with modern inverter technology, the machine provides stable arc performance and efficient power usage, making it suitable for workshop fabrication, metal repair, and maintenance operations.
The unit supports MIG welding with adjustable wire feed speed from 2 to 15 meters per minute and accommodates welding wire sizes of 0.6mm, 0.8mm, and 1.0mm. For MMA welding, the machine supports electrodes ranging from 1.6mm to 4.0mm, allowing flexibility for different welding materials and thicknesses. The Lift TIG function provides an additional option for controlled welding tasks requiring cleaner welds.
The integrated LED display allows users to easily monitor welding parameters during operation. With a built-in wire feeder and compatibility with 5kg wire spools, the machine is designed to support continuous welding operations in fabrication and maintenance environments.
Ideal Applications
- Metal fabrication and workshop welding
- Maintenance and repair welding tasks
- General-purpose welding for steel structures and equipment
Technical Specifications
| Model | WGTMA20 |
| Welding Processes |
MIG / MAG MMA Lift TIG |
| Input Voltage | 1~220–240V |
| Frequency | 50 / 60Hz |
| MIG Output Current | 40 – 200A |
| MMA Output Current | 40 – 200A |
| Lift TIG Output Current | 15 – 200A |
| Duty Cycle | 30% @ 40°C |
| No-Load Voltage | 65V |
| Wire Feeder | Built-in |
| Wire Spool Capacity | 5kg |
| Welding Wire Size |
0.6mm 0.8mm 1.0mm |
| Wire Speed | 2 – 15 m/min |
| MMA Electrode Diameter | 1.6 – 4.0mm |
| Display | LED display |
What’s Included
- Wadfow WGTMA20 Welding Machine
- MIG torch
- Earth clamp with cable
- Electrode holder
- 3m gas hose
