Description

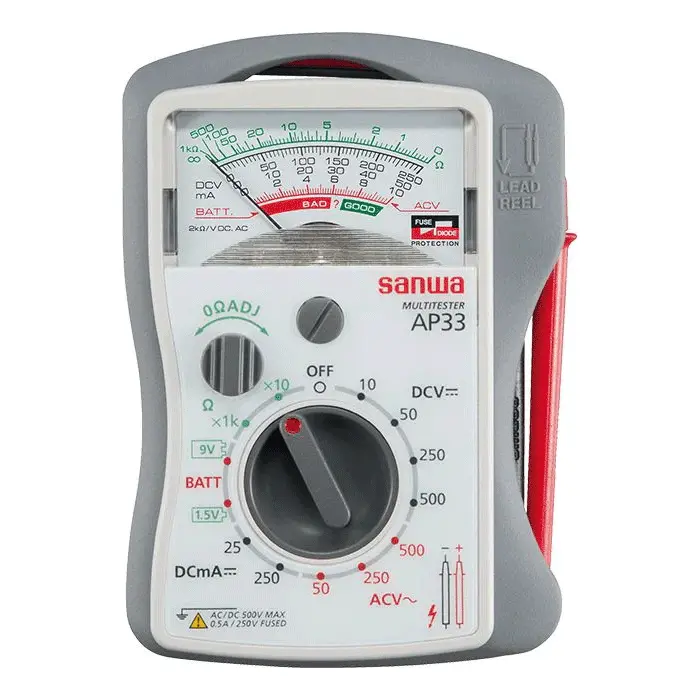

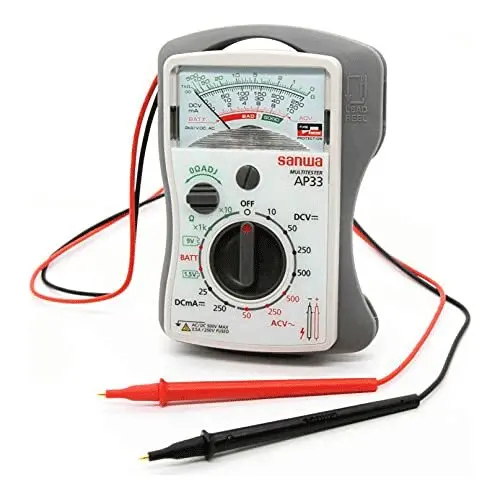

Sanwa AP33 Analog Pocket Multimeter
-
- Elastomer material absorbs shock from fall
- High-durability nylon-woven copper test leads
- Easy battery check (BAD or GOOD) for 1.5V and 9V
The Sanwa AP33 is a tough, pocket-size analog multimeter designed to measure low power circuits.
The AP33 is a compact, analog multimeter suitable for measuring voltages and testing continuity of household appliances, and measuring voltages of electric light circuits, batteries, etc. The AP33 has an accuracy of ±5% of full scale in both AC & DC mode. The device can measure 500 volts maximum (DC & AC), and has a DC current range of 25m to 250mA. When testing power lines with the AP33 make sure not to exceed the 3.6 kVA rating. Avoid measuring lines with inductive voltages and surge voltages as they may exceed the maximum limit and damage the meter.
The device is made from elastomer material that absorbs shock from falls. It comes with high-durability nylon-woven copper test leads with removable caps feature for easier probing. It has a built-in fuse with a rating of 0.5 Amperes/250 volts, and a built-in battery (R03 (AAA battery) 1.5 V × 1).
Includes meter, test leads and instructions.
| Range | Accuracy | |
|---|---|---|
| DCV | 10/50/250/500V (2kΩ/V) | ±5% of full scale |
| ACV | 50/250/500V (2kΩ/V) | ±5% of full scale |
| Battery Check | 1.5V / 9V | – |
| DCA | 25m / 250mA | ±5% of full scale |
| Resistance | 5k / 500kΩ | ±3% arc |
| Meter Type | Pivot Meter |
| Operating temperature / humidity | 5℃ ~ 40℃, 80%RH or below / No condensation |
| Storage temperature / humidity | -10℃ ~ 50℃, 70%RH or below / No condensation |
| Operating environment | Altitude 2000m or less, indoor use, environmental pollution degree II |
| Bandwidth | 40 ~ 10kHz (less than 50V) |
| Fuse | 0.5A / 250V, Φ5.0 × 20mm |
| Battery | R03 × 1 |
| Size / Weight | 126H × 87W × 30D mm / 185g |
| Standard accessories included | Instruction manual |
